Shenzhen Huidu Technology Co., Ltd.

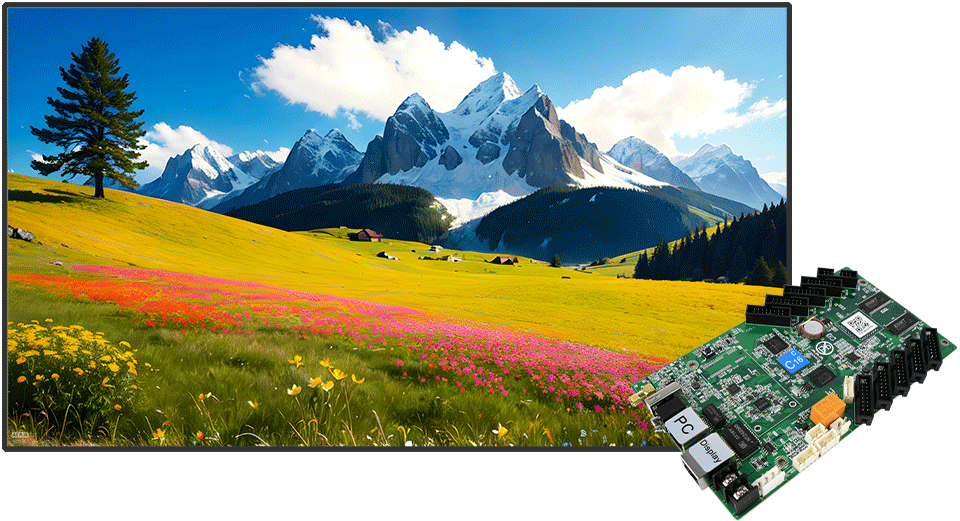

Maximum Loading Capacity 204,800 Pixels

Maximum width is 8,192 pixels or maximum hight is 1,024 pixels

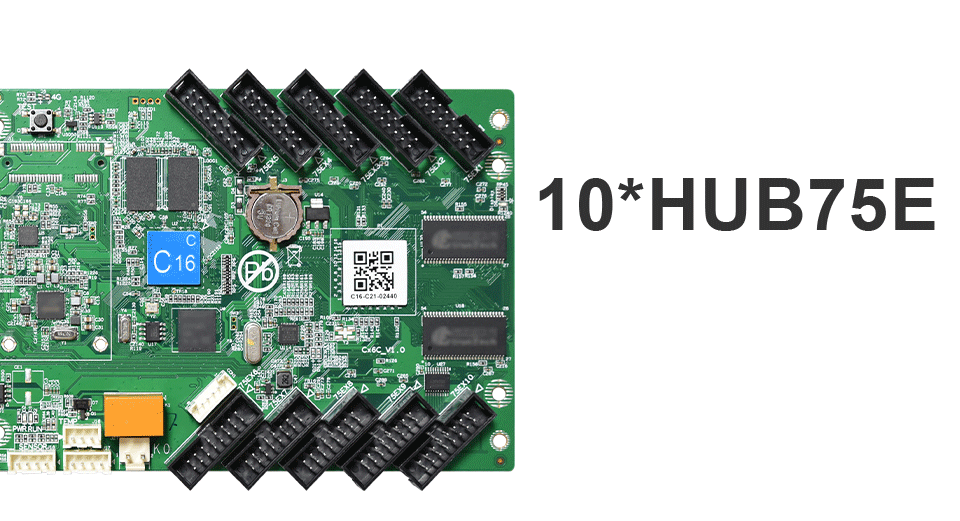

Both Async Sending Card and Receiving Card

On board flat cable interface, it can use for one receiving card

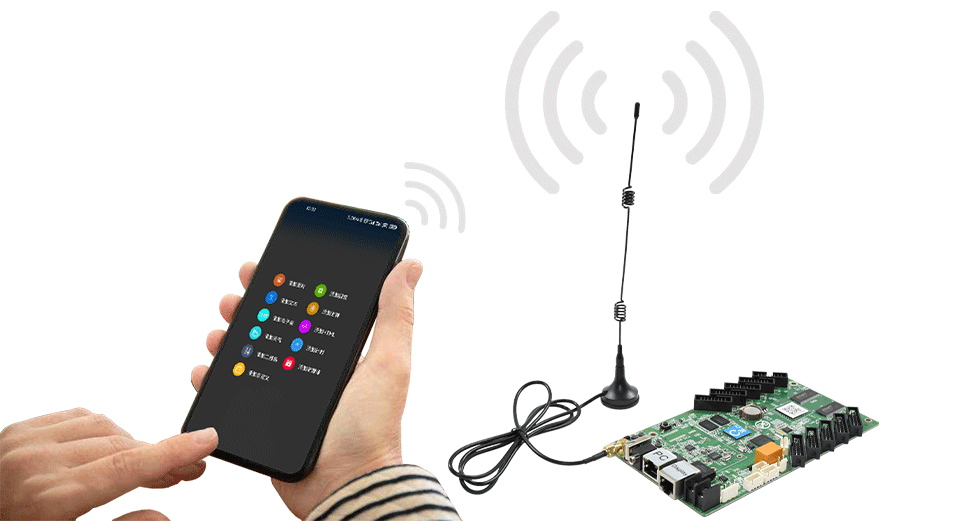

Mobile APP Wireless Control

Equipped with Wi-Fi, Support mobile phone wireless control

Control th Power Supply Remotely

With a relay to control the power supply remotely

Internet Remote Cluster Control

Support for optional 4G networking connect to "XiaoHui Cloud", Free to used

MODEL	C16C
Module type	Compatible with indoor and outdoor full color and single color module Support conventional chip and mainstream PWM chip
Scan Mode	Static to 1/64 scan mode
Control Range	640*320, widest 8192, highest 1024
Gray Scale	256-65536
Basic functions	Video, Pictures, Gif, Text, office, Clocks, Timing etc. Remote, Temperature, Humidity, Brightness etc.
Video format	Support 1080P HD video hardware decoding, direct transmission, without transcoding waiting. 60Hz frame frequency output； AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image Format	Support BMP, GIF, JPG, PNG, PBM, PGM, PPM, XPM, XBM etc.
Text	Text editing, Image, Word, Txt, Rtf, Html etc.
Document	DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format.
Time	Classic Analog clock, digital clock and of clock with image background.
Audio output	Double track stereo audio output.
Memory	4GB Flash memory; Indefinite expanding of U-disk memory.
Communication	Ethernet LAN port, 4G network (optional), Wi-Fi, USB.
Working Temperature	-20℃-80℃
Port	INPUTS: 5V DC1, 100 Mbps RJ451, USB 2.01, test button1, sensor port1, GPS port1. OUT:1Gbps RJ451, AUDIO1
Power	8W
